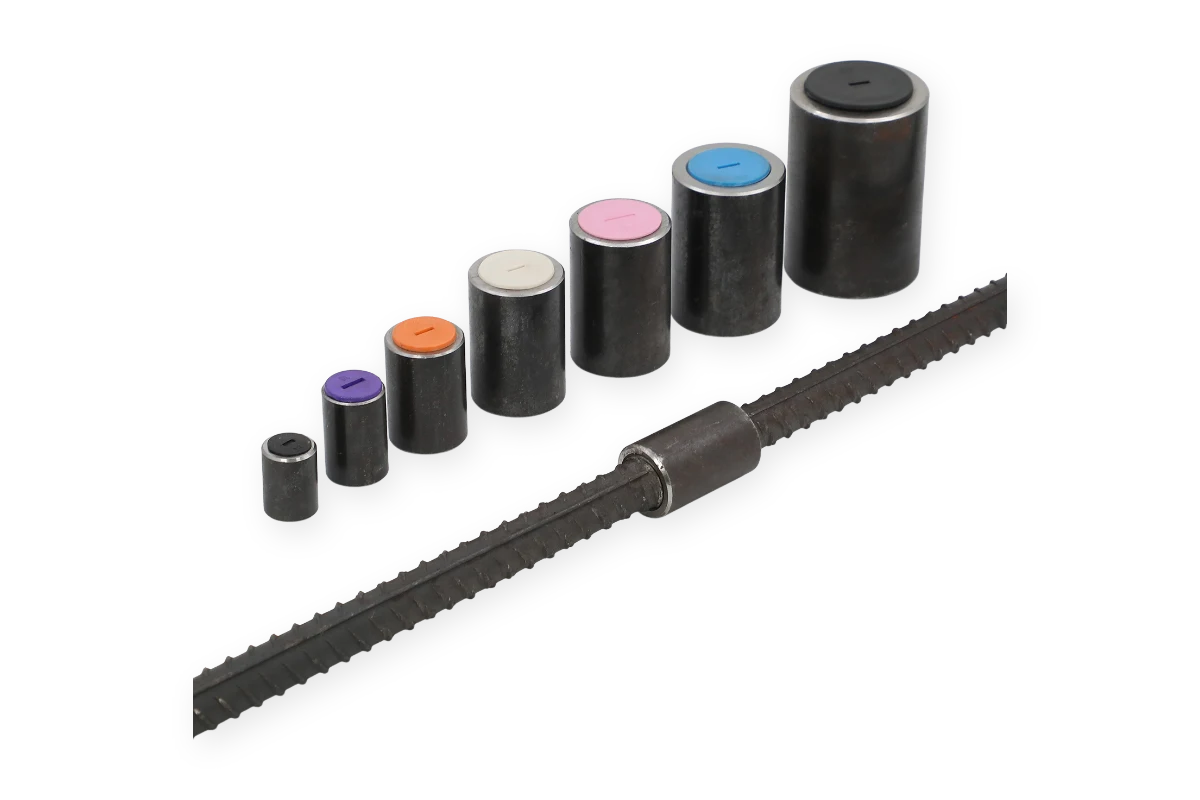

CES Cold Enforcement Splicing System — Parallel Threaded Rebar Coupler
REBARLINK™ CES (Cold Enforcement Splicing System) is a parallel threaded mechanical rebar coupler system engineered for full bar-break performance under applicable qualification and project test requirements, demanding reinforced concrete structures and controlled mechanical splice installation.
REBARLINK™ CES is a parallel threaded rebar coupler system for mechanical rebar splicing. It uses controlled cold bar-end preparation and precision parallel threading to connect reinforcing bars in reinforced concrete structures, with the system engineered for full bar-break performance under applicable qualification and project test requirements.
The REBARLINK™ CES Cold Enforcement Splicing System is a parallel threaded mechanical rebar coupler system developed for structural reinforced concrete applications requiring reliable mechanical load transfer, controlled installation and high connection performance.
What Is the CES Cold Enforcement Splicing System?
CES stands for Cold Enforcement Splicing System. REBARLINK™ uses the term Cold Enforcement to distinguish its CES system from conventional terminology used by other manufacturers for cold forged or cold upset rebar coupler systems.
The CES system combines controlled bar-end preparation, precision thread processing and parallel threaded coupler assembly to create a controlled mechanical splice for reinforced concrete construction. The system is intended for applications where mechanical load transfer, reinforcement continuity and controlled installation are important project considerations.
Application, performance, certification and testing requirements should always be verified against the applicable product specification, structural design requirements and jurisdiction.
Cold Enforcement + Parallel Thread
A controlled bar-end preparation and precision parallel thread rebar coupler system engineered for reliable mechanical splice performance in reinforced concrete structures.
- Cold Enforcement bar-end preparation
- Precision parallel thread connection
- Full bar-break performance under applicable qualification requirements
- 100% critical thread inspection
- Controlled field installation
CES Rebar Coupler Performance & Engineering Characteristics
Full Bar-Break Performance
CES is engineered around a full bar-break performance principle. Under the applicable qualification and project test requirements, the intended performance is for failure to occur in the reinforcing bar rather than at the mechanical splice.
Cold Enforcement Bar-End Preparation
Controlled bar-end preparation supports the required geometry and effective section for subsequent precision thread processing.
Parallel Thread Connection
Precision parallel threads provide controlled mechanical engagement and repeatable assembly characteristics.
Structural Applications
Designed for demanding reinforced concrete applications including high-rise, infrastructure, industrial and other critical structures, subject to project design requirements.
Reduced Rebar Congestion
Mechanical splicing can reduce the reinforcement overlap associated with conventional lap connections and may help improve reinforcement arrangement where permitted by structural design requirements.
Controlled Installation
Controlled assembly and inspection procedures provide construction teams with a repeatable mechanical splice installation process.
CES Quality & Compliance Indicators
Reinforcing steel mechanical splicing requirements and quality reference.
Chinese national standard GB/T 42796-2023 reference, aligned with the relevant ISO 15835-1 requirements.
Chinese national standard GB/T 42901-2023 testing-method reference, aligned with the relevant ISO 15835-2 requirements.
ACI 318 Type 2 mechanical splice application reference for reinforced concrete structures, subject to project requirements.
Chinese industry specification JGJ 107-2016 reference for mechanical rebar splicing applications.
UK CARES certification reference where applicable to the supplied system, product and project requirements.
Dubai Municipality product conformity reference where applicable to project-specific product and approval requirements.
Chinese construction engineering testing and technical conformity reference where applicable to the supplied system.
Digital identification and traceability information can support product origin, inspection and quality records.
Project-specific certification, test reports and compliance documentation should be confirmed according to the applicable product specification, project requirements and jurisdiction. Certification references shown on this page do not replace project-specific approval or engineering verification.
REBARLINK™ CES Quality Assurance Process
Raw Material Verification
Steel grade, incoming material condition and material traceability are controlled according to production requirements.
Heat Treatment Process
Controlled heat treatment is performed according to the applicable material and production requirements to support consistent material and manufacturing performance.
Coupler Manufacturing
Controlled manufacturing operations produce CES couplers according to specified geometry, material and dimensional requirements.
Precision Thread Processing
Precision machining creates the specified parallel thread geometry followed by dimensional verification of critical characteristics.
Go / No-Go Gauge Inspection
Calibrated gauges are used to verify functional thread engagement and applicable dimensional requirements.
Final Quality Approval
Final inspection and quality confirmation are completed before approved CES couplers are released for shipment.
CES Rebar Coupler Applications
High-Rise Construction
Core walls, columns and high-density reinforcement zones requiring controlled mechanical splicing.
Infrastructure Projects
Bridges, tunnels, transportation structures and reinforced concrete infrastructure.
Energy & Industrial
Power plants, industrial facilities and critical reinforced concrete structures.
Precast & Modular Construction
Factory-manufactured reinforced concrete components and high-density reinforcement assemblies.
CES Rebar Coupler Installation Procedure
The CES mechanical rebar splice system is designed for controlled field installation. Correct bar preparation, thread inspection and assembly procedures are essential for achieving the specified connection performance.
Rebar Cutting
Cut reinforcing bar ends square according to the required length and dimensional tolerance.
Cold Upsetting
Cold-forge the cut bar ends to enlarge the core diameter, providing an effective section for subsequent thread processing and supporting the required mechanical connection performance.
Thread Processing
Cut precision parallel threads onto the cold-upset bar ends to match the internal thread of the coupler.
Thread Inspection
Verify thread quality and functional dimensions using calibrated inspection gauges according to the applicable quality-control procedure.
Coupler Assembly
Assemble the coupler according to the applicable installation procedure, project requirements and engineering documentation.
Parallel thread design supports controlled assembly and can help reduce reinforcement congestion associated with conventional lap splicing, subject to structural design requirements.
CES Technical Specifications
Standard CES parallel threaded rebar couplers are available for reinforcing bar sizes from Ø14 mm to Ø40 mm based on the current CES standard product range. Customized dimensions and special project requirements can be evaluated by the REBARLINK™ engineering team.
| Rebar Size (mm) | Code | OD (mm) | L (mm) | Threading Size | Weight (kg) |
|---|---|---|---|---|---|
| 14 | CES14 | 24 | 34 | M16 × 2.0 | 0.07 |
| 16 | CES16 | 26 | 40 | M20 × 2.5 | 0.08 |
| 18 | CES18 | 30 | 44 | M22 × 2.5 | 0.14 |
| 20 | CES20 | 32 | 48 | M24 × 3.0 | 0.15 |
| 22 | CES22 | 36 | 52 | M27 × 3.0 | 0.21 |
| 25 | CES25 | 40 | 60 | M30 × 3.5 | 0.30 |
| 28 | CES28 | 44 | 66 | M33 × 3.5 | 0.40 |
| 32 | CES32 | 50 | 72 | M36 × 4.0 | 0.61 |
| 36 | CES36 | 56 | 80 | M39 × 4.0 | 0.88 |
| 40 | CES40 | 62 | 90 | M45 × 4.0 | 1.14 |
CES vs PPR Rebar Coupler Systems
CES and PPR are both parallel threaded mechanical rebar splice systems, but they use different bar-end preparation and thread processing approaches. The appropriate system should be selected according to rebar grade, bar diameter, project specification, installation method and required testing or certification.
The following comparison provides a high-level engineering distinction between the two REBARLINK™ parallel threaded mechanical splice systems.
| Feature | CES | PPR |
|---|---|---|
| System Type | Cold Enforcement Splicing System | Rib Peeling & Roll-Threaded System |
| Bar-End Preparation | Controlled cold bar-end preparation | Rib peeling |
| Thread Process | Precision parallel threading | Thread rolling after rib peeling |
| Connection | Parallel threaded mechanical connection | Parallel threaded mechanical connection |
| Typical Strength Objective | Full bar-break performance under applicable qualification requirements | Full-strength mechanical splice performance under applicable qualification requirements |
| Primary Engineering Consideration | Controlled cold bar-end preparation and precision threading | Automated rib peeling and thread rolling |
CES Technical Documents & Downloads
Access engineering documents, product specifications, installation guides and quality information for REBARLINK™ CES Cold Enforcement Splicing Systems.
CES Product Datasheet
Technical dimensions, material information, performance data and available models.
REQUEST DATASHEET →Installation Manual
Installation procedure, inspection requirements and field guidance.
REQUEST GUIDE →Quality & Test Documents
Inspection procedures, dimensional control, test reports and applicable compliance documents.
REQUEST DOCUMENTS →CES Cold Enforcement Splicing System FAQ
What is CES?
CES is the REBARLINK™ abbreviation for Cold Enforcement Splicing System, a parallel threaded mechanical rebar coupler system designed for reinforced concrete applications.
What does Cold Enforcement Splicing System mean?
Cold Enforcement is the terminology used by REBARLINK™ to identify its CES mechanical splicing system and distinguish the system from conventional cold forged terminology used by other manufacturers.
Is CES a parallel threaded rebar coupler?
Yes. CES uses a parallel threaded mechanical connection configuration designed for controlled thread engagement and mechanical load transfer.
Does CES provide 100% bar-break performance?
CES is engineered around a full bar-break performance principle. Under the applicable qualification and project test requirements, the intended performance is for failure to occur in the reinforcing bar rather than at the mechanical splice.
How does REBARLINK control CES quality?
REBARLINK™ applies controlled material verification, heat treatment, coupler manufacturing, precision thread processing, Go / No-Go gauge inspection and final quality approval procedures.
What standards are relevant to CES?
Relevant standards may include ISO 15835, ACI 318 and other project-specific standards or specifications. Applicable certification and compliance documentation should be confirmed for each project.
What rebar sizes are available?
The current standard CES product range covers reinforcing bar sizes from Ø14 mm to Ø40 mm. Customized solutions can be evaluated for project-specific requirements.
Can CES replace traditional lap splicing?
Mechanical splicing can reduce reinforcement congestion and eliminate the additional steel length associated with conventional lap connections, subject to structural design and project requirements.
How is CES thread quality inspected?
CES critical thread characteristics and functional dimensions are verified using controlled Go / No-Go gauge inspection and applicable production quality-control procedures.
What is the difference between CES and PPR rebar couplers?
CES uses controlled cold bar-end preparation and precision parallel threading, while PPR uses automated rib peeling and cold thread rolling. Both systems use a parallel threaded mechanical connection and are engineered for full-strength mechanical splicing under applicable qualification requirements.
What is a parallel threaded rebar coupler?
A parallel threaded rebar coupler is a mechanical splice fitting that connects reinforcing bars using matching parallel threads rather than relying on conventional lap splice length.
What is the difference between a mechanical splice and a lap splice?
A mechanical splice transfers reinforcing bar forces through a mechanical connection, while a conventional lap splice transfers forces through the overlapping length of reinforcing bars and surrounding concrete. Selection should follow structural design and applicable project requirements.
When should a mechanical rebar splice be used?
Mechanical rebar splices may be considered where reinforcement congestion, bar continuity, construction sequence, lap-length limitations or project-specific structural requirements make mechanical connection advantageous.
